本系列液壓缸結構緊湊簡單，比同等壓力等級液壓缸體積小，工作壓力7MPa、14MPa、缸徑40~250mm，環境溫度~10℃~+80℃
規格/技術參數
|
缸徑D
|
最低起動壓力
|
允許最高速度
|
******行程mm
|
活塞面積c㎡
|
速比
|
|
無桿腔
|
有桿腔
|
B型
|
C型
|
|
B型
|
C型
|
|
40
|
≤0.3Mpa
|
300mm/s
|
1200
|
12.5
|
8.1
|
10
|
1.45
|
1.25
|
|
50
|
19.6
|
13.4
|
15.6
|
1.46
|
|
63
|
1600
|
31.1
|
21.2
|
25
|
1.47
|
|
80
|
50.2
|
34.3
|
40.3
|
1.46
|
|
100
|
2000
|
78.5
|
53.9
|
62.6
|
1.46
|
|
125
|
122.7
|
83.1
|
98
|
1.47
|
|
140
|
153.0
|
103.6
|
122.7
|
1.48
|
|
150
|
176.7
|
119.9
|
141.4
|
1.47
|
|
160
|
201.0
|
137.4
|
161.4
|
1.46
|
|
180
|
254.4
|
175.9
|
204.2
|
1.45
|
|
200
|
314.1
|
215.6
|
250.5
|
1.46
|
|
220
|
394.0
|
271.3
|
315.5
|
1.45
|
|
250
|
490.8
|
336.9
|
392.3
|
1.46
|

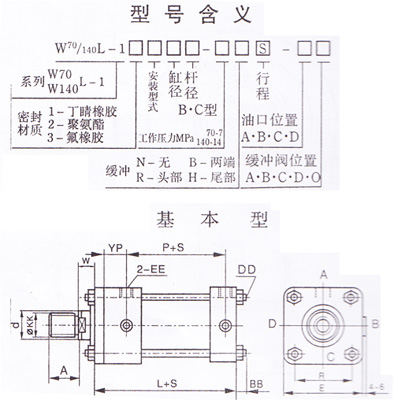

基本型尺寸
|
缸徑D
|
40
|
50
|
63
|
80
|
100
|
125
|
140
|
150
|
160
|
180
|
200
|
220
|
250
|
|
B型
|
ΦKK
|
M22×1.5
|
M24×1.5
|
M30×1.5
|
M39×1.5
|
M48×1.5
|
M64×2
|
M72×2
|
M76×2
|
M80×2
|
M95×2
|
M100×2
|
M1200×2
|
M130×2
|
|
A
|
30
|
35
|
45
|
60
|
75
|
95
|
110
|
115
|
120
|
140
|
150
|
180
|
190
|
|
d
|
22
|
28
|
35
|
45
|
60
|
75
|
80
|
85
|
90
|
100
|
110
|
125
|
140
|
|
C型
|
ΦKK
|
M16×1.5
|
M20×1.5
|
M24×1.5
|
M30×1.5
|
M39×1.5
|
M48×1.5
|
M56×2
|
M60×2
|
M64×2
|
M72×2
|
M80×2
|
M95×2
|
M100×2
|
|
A
|
25
|
30
|
35
|
45
|
60
|
75
|
80
|
85
|
95
|
100
|
120
|
140
|
150
|
|
d
|
18
|
22
|
28
|
35
|
45
|
55
|
63
|
65
|
70
|
80
|
90
|
100
|
110
|
|
BB
|
11
|
11
|
13
|
16
|
18
|
21
|
22
|
25
|
25
|
27
|
29
|
34
|
37
|
|
DD
|
M10×1.25
|
M10×1.25
|
M12×1.5
|
M16×1.5
|
M18×1.5
|
M22×1.5
|
M24×1.5
|
M27×1.5
|
M27×1.5
|
M30×1.5
|
M33×1.5
|
M39×1.5
|
M42×1.5
|
|
E
|
65
|
75
|
90
|
110
|
135
|
165
|
185
|
196
|
210
|
235
|
262
|
292
|
325
|
|
EE
|
ZG3/8
|
ZG1/2
|
ZG3/4
|
ZG1
|
ZG1 1/4
|
ZG1 1/4
|
ZG2
|
|
L
|
141
|
155
|
163
|
184
|
192
|
220
|
230
|
240
|
253
|
275
|
301
|
305
|
346
|
|
P
|
90
|
98
|
102
|
110
|
116
|
130
|
138
|
146
|
156
|
172
|
184
|
184
|
200
|
|
R
|
45
|
52
|
63
|
80
|
102
|
122
|
138
|
148
|
160
|
182
|
200
|
225
|
250
|
|
W
|
30
|
30
|
35
|
35
|
40
|
45
|
50
|
50
|
55
|
55
|
55
|
60
|
65
|
|
YP
|
38
|
42
|
46
|
56
|
58
|
67
|
69
|
71
|
74
|
75
|
85
|
89
|
106
|
|
